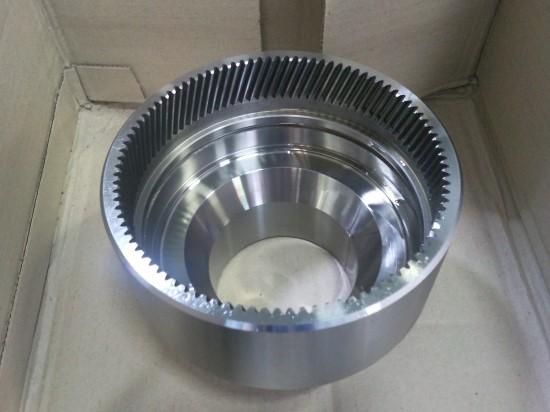

Internal gears

Internal gears

Inquiry now
Besta full line of gear manufacturing services includes internal gears, in addition to our selection of conventional, external gears. Internal gears, with teeth located on the inside as opposed to the outside of the gear, are used in all industries, such as electronics and chemical applications. We also serve customers in the medical, automotive, biotechnology, and packaging industries. Our internal gears can be produced in diameters up to 700mm, with a maximum module 12.

As with our conventional external gears, shaft options include flat or hex shafts, and we use gear cutting methods from broaching to hobbing, depending on design choices and end-user requirements. We can also heat treat internal gears via quenching, carburizing, flame induction, or nitriding.

Product Specifications:

Material

C45,1045,42CrMnTi,20CrMnTi,2HT200,HT250,QT400-18,QT400-15,Acetal/Delrin,Alloy,Aluminum,Brass, Bronze, Carbon Steel, Ductile Iron, Gray Cast Iron, Nylo, Plastic, Phenolic, Polycarbonate, Polyester, Stainless Steel etc.

Module

From 1-12

Accuracy

DIN Class 6, ISO/GB Class 6, AGMA Class 13, JIS Class 2

Standard

DIN, ISO/GB, AGMA, JIS

Heat treatment

Quenching and tempering, gear teeth induction quenching, nitriding, carburizing

Application

automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics

Max O.D

Max 700mm


Capabilities of Gears:

Product Name

Internal gear, Ring gear, Internal helical gear

Tooth profile

Involute teeth

Pressure Angle

14.5°，20°，22.5° etc.

Max O.D

800mm

Max Width

160mm

Teeth No.

50~200

Accuracy Grade

DIN6-DIN10
