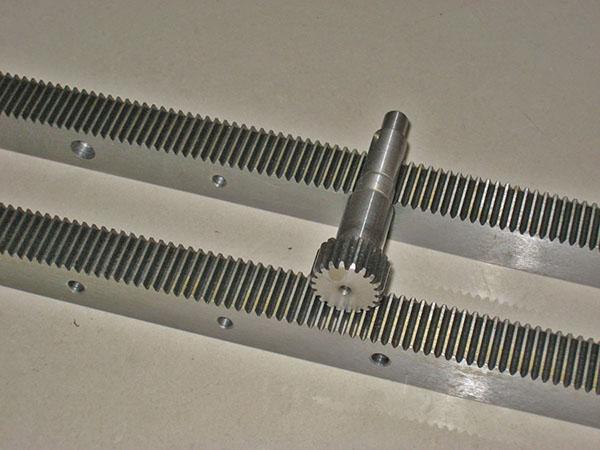

Rack and pinion is utilized to convert rotational motion to linear motion. A rack is straight teeth cut into one surface of rectangular or cylindrical rod shaped material, and a pinion is a small cylindrical gear meshing with the rack. There are many ways to categorize gears. If the relative position of the gear shaft is used, a rack and pinion belongs to the parallel shaft type.

We provide custom gear racks in metric standards, straight and helical tooth, various materials, fine and coarse pitch (0.5 Module – 20 Module), max width 150mm, lengths 2000mm, tooth finish include milling, shaping, ground etc,Precise grade up to DIN 6/JGMA 2


Spur gear (Milled&Shaped)


Precision Grade:(JIS Grade 3)DIN 7e25                                                                                Treatment of Teeth: Milled
Material: (S45C Medium Carbon Steel)C45                                                                              Hardness: High Frequency(HRC43~45)
Type: Straight Rack                                                                                                                Side Ground: Included
Pressure Angle: 20°

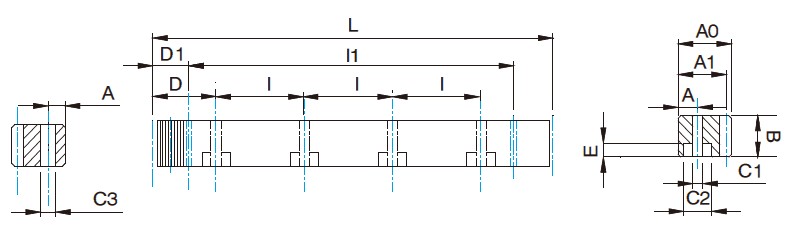

Module

L

Tooth No.

B

A0

A1

D

I

Hole No.

A

C1

C2

E

D1

I1

C3

Total Pitch Error /300mm

1.5

999.03

212

19

19

17.5

62.44

124.88

8

8

7

11

7

29.0

941.0

5.7

0.03

2

999.03

159

24

24

22

62.83

125.66

8

8

7

11

7

31.3

942.7

5.7

0.031

2.5

1005.31

128

24

24

21.5

62.83

125.66

8

9

7

11

7

31.3

942.7

5.7

0.033

3

1017.88

108

29

29

26

63.62

127.23

8

9

10

15

9

34.4

949.1

7.7

0.035

4

1005.31

80

39

39

35

62.83

125.66

8

12

10

15

9

37.5

930.3

7.7

0.038

5

1005.31

64

49

39

34

62.83

125.66

8

12

14

20

13

30.2

945.0

11.7

0.04

6

1017.88

54

59

49

43

63.62

127.23

8

12

18

26

17

31.4

955.0

15.7

0.042

8

1005.31

40

79

79

71

62.83

125.66

8

25

22

33

21

26.6

952.0

19.7

0.045

10

1005.31

32

99

99

89

62.83

125.66

8

32

33

48

32

125.7

753.96

19.7

0.052


Remark:
1. Racks without holes are also available.
2. Other Dimensions/Materials could be customized by drawings.
3. Pitch Error: total pitch error per 300 mm.
