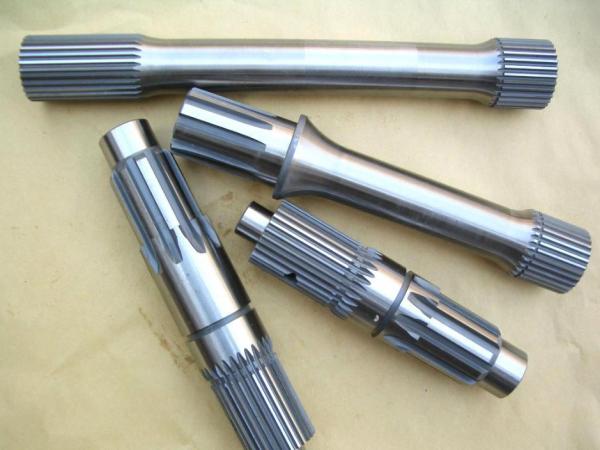

Product Specifications:
|
Material |
C45,1045,42CrMnTi,20CrMnTi,2HT200,HT250,QT400-18,QT400-15,Acetal/Delrin,Alloy,Steel,Aluminum,Brass,
Bronze, Carbon Steel, Ductile Iron, Gray Cast Iron, Nylo, Plastic, Phenolic,
Polycarbonate, Polyester, Stainless Steel |
|
Module |
0.5-8 |
|
Accuracy |
DIN Class 6, ISO/GB Class 6, AGMA Class 13, JIS Class 2 |
|
Standard |
DIN, ISO/GB, AGMA, JIS |
|
Heat treatment |
Quenching and tempering, gear teeth induction quenching, nitriding, carburizing |
|
Application |
automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics |
|
Shaft length |
Max 800mm. |
Capabilities of Gears/ Splines：
|
EXTERNAL GEARS AND EXTERNAL SPLINES |
|||
|
|
Milled |
SHAPED |
GROUND |
|
Maximum O.D. |
2000mm |
2000mm |
2000mm |
|
Minimum I.D. |
30 mm |
30 mm |
320 mm |
|
Maximum Face Width |
500 mm |
500 mm |
500 mm |
|
Maximum DP |
DP 3.18 |
DP 3.18 |
DP 3.18 |
|
Maximum Module |
24 |
24 |
24 |
|
AGMA Level/ DIN Level |
DIN Class 8 |
DIN Class 8 |
DIN Class 6 |
|
Tooth Finish |
Ra 3.2 |
Ra 3.2 |
Ra 0.6 |
|
Maximum Helix Angle |
±22.5° |
±22.5° |
±45° |
|
INTERNAL GEARS AND INTERNAL SPLINES |
|||
|
|
HOBBED |
MILLED |
GROUND |
|
Maximum O.D. |
2000 mm |
2000 mm |
2000 mm |
|
Minimum O.D. |
20 mm |
20 mm |
20 mm |
|
Maximum Face Width |
500 mm |
500 mm |
1000 mm |
|
Maximum DP |
DP 2 |
DP 2 |
DP 2 |
|
Maximum Module |
12 |
12 |
12 |
|
AGMA Level/ DIN Level |
DIN Class 8 |
DIN Class 8 |
DIN Class 5 |
|
Tooth Finish |
Ra 3.2 |
Ra 3.2 |
Ra 0.6 |
|
Maximum Helix Angle |
±45° |
±45° |
±45° |
