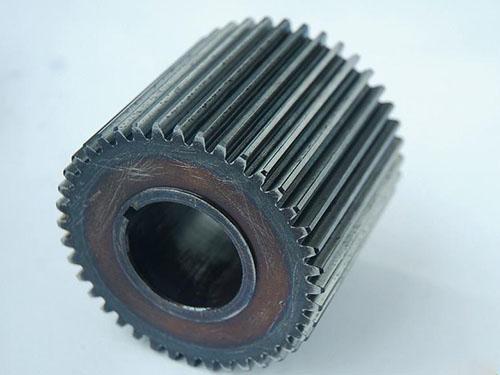

A spur gear has a cylindrical pitch surface with teeth that are parallel to the axis, Spur Gears are widely used in kinds of application. Teeth treatment include shaping, hobbing and grinding, the Max OD is 1600mm, module from 0.5 to 25.

We mainly accept OEM services, most spur gears customized as your drawing or sample.


Product Specifications:

Material

C45,1045,42CrMnTi,20CrMnTi,2HT200,HT250,QT400-18,QT400-15,Acetal/Delrin,Alloy,Steel,Aluminum,Brass, Bronze, Carbon Steel, Ductile Iron, Gray Cast Iron, Nylo, Plastic, Phenolic, Polycarbonate, Polyester, Stainless Steel etc.

Modulus

0.5-24

Accuracy

DIN Class 6, ISO/GB Class 6, AGMA Class 13, JIS Class 2

Standard

DIN, ISO/GB, AGMA, JIS

Heat treatment

Quenching and tempering, gear teeth induction quenching, nitriding, carburizing

Application

automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics

Shaft length

Max 1600mm.


Capabilities of Gears

Item

Internal Gears

External Gears

Milled

Shaped

Ground

Hobbed

Milled

Ground

Max O.D.

1600mm

Min I.D.(mm)

30

320

20

Max Face Width(mm)

500

1480

Max DP

1

1

1

1

Max Module(mm)

26

45

26

45

AGMA/ DIN Level

DIN Class 8

DIN Class 6

DIN Class 8

DIN Class 6

Tooth Finish

Ra 3.2

Ra 0.6

Ra 3.2

Ra 0.6

Max Helix Angle

±22.5°

±45°
