Metric bevel gears

Metric bevel gears

Inquiry now

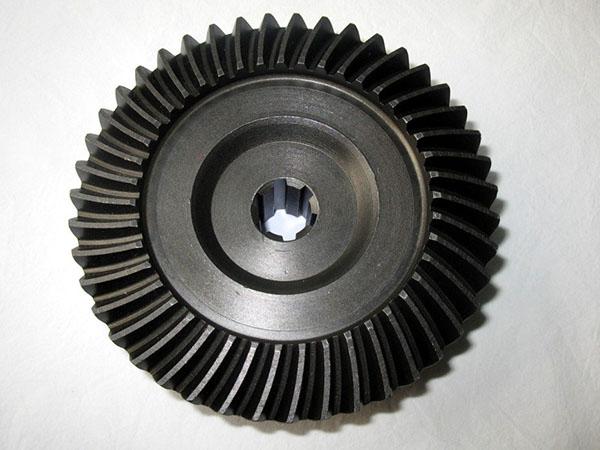

Spiral bevel gears are used to transmit power between shafts that are at a 90-degree orientation to each other,Spiral bevel gears have teeth that are curved and oblique.

Bestagear is specialized in the medium and large size spiral bevel gears, which mostly used in the oil fields, mining, metallurgy and marine fields.

Max OD up to 800mm, module from 1 to 15.


Product Specifications:

Material

C45,1045,42CrMnTi,20CrMnTi,2HT200,HT250,QT400-18,QT400-15,Acetal/Delrin,Alloy,Steel,Aluminum,Brass, Bronze, Carbon Steel, Ductile Iron, Gray Cast Iron, Nylo, Plastic, Phenolic, Polycarbonate, Polyester, Stainless Steel etc.

Modulus

1-15

Accuracy

DIN Class 6, ISO/GB Class 6, AGMA Class 13, JIS Class 2

Standard

DIN, ISO/GB, AGMA, JIS

Heat treatment

Quenching and tempering, gear teeth induction quenching, nitriding, carburizing

Application

automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics


Capabilities of Gears:

Item

Bevel gear

Milled

Shaped

Ground

Max O.D.

800mm

Max Face Width(mm)

500

Pressure Angle

15°,21.5°,20°,22.5°

Helix Angle

35°

Teeth type:

Straight,Spiral, Involute

Max DP

1.69

3.18

Max Module(mm)

15

8

AGMA/ DIN Level

DIN Class 8

DIN Class 6

Tooth Finish

Ra 3.2

Ra 0.6

Max Helix Angle

±22.5°

±45°
