Product Specifications:
|
Material |
C45,1045,42CrMnTi,20CrMnTi,2HT200,HT250,QT400-18,QT400-15,Acetal/Delrin,Alloy,Steel,Aluminum,Brass, Bronze, Carbon Steel, Ductile Iron, Gray Cast Iron, Nylo, Plastic, Phenolic, Polycarbonate, Polyester, Stainless Steel etc. |
|
Modulus |
1-15 |
|
Accuracy |
DIN Class 6, ISO/GB Class 6, AGMA Class 13, JIS Class 2 |
|
Standard |
DIN, ISO/GB, AGMA, JIS |
|
Heat treatment |
Quenching and tempering, gear teeth induction quenching, nitriding, carburizing |
|
Application |
automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics |
Capabilities of Gears:
|
Item |

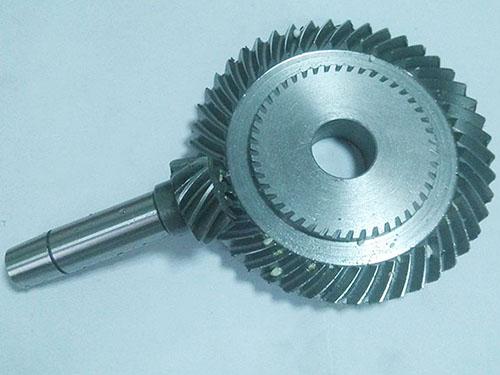

Bevel gear |
||
|
Milled |
Shaped |
Ground |
|
|
Max O.D. |
800mm |
||
|
Max Face Width(mm) |
500 |
||
|
Pressure Angle |
15°，21.5°，20°，22.5° |
||
|
Helix Angle |
35° |
||
|
Teeth type: |
Straight,Spiral, Involute |
||
|
Max DP |
1.69 |
3.18 |
|
|
Max Module(mm) |
15 |
8 |
|
|
AGMA/ DIN Level |
DIN Class 8 |
DIN Class 6 |
|
|
Tooth Finish |
Ra 3.2 |
Ra 0.6 |
|
|
Max Helix Angle |
±22.5° |
±45° |
|
