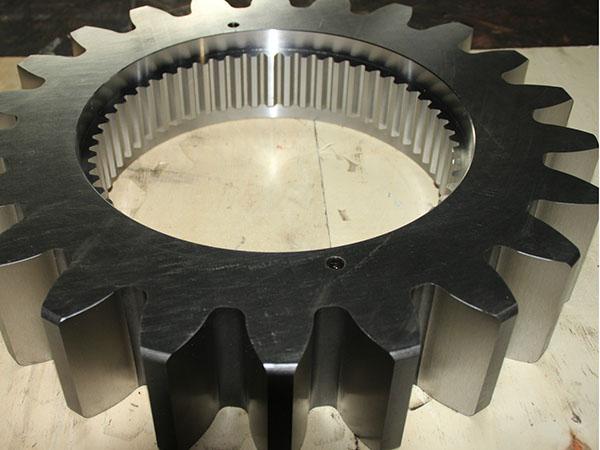

Internal ring gear

Internal ring gear

Inquiry now
A spur gear in which teeth, formed on the inner circumference of an annular wheel, mesh with the external teeth of a smaller pinion. Both wheels revolve in the same direction. We are capable of the module range 0.5-25, Precise up to AGMA 4/DIN 8. Tooth treatment include: Shaping, Broaching, Shaving etc.

Usually we accept OEM service or custom made internal gear. Pls send us drawing or sample for inquiry


Product Specifications:

Material

C45,1045,42CrMnTi,20CrMnTi,2HT200,HT250,QT400-18,QT400-15,Acetal/Delrin,Alloy,Aluminum,Brass, Bronze, Carbon Steel, Ductile Iron, Gray Cast Iron, Nylo, Plastic, Phenolic, Polycarbonate, Polyester, Stainless Steel etc.

Module

Module range 1-12

Accuracy

DIN Class 6, ISO/GB Class 6, AGMA Class 13, JIS Class 2

Standard

DIN, ISO/GB, AGMA, JIS

Heat treatment

Quenching and tempering, gear teeth induction quenching, nitriding, carburizing

Application

automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics

Max O.D

Max 800mm


Capabilities of Gears:

Product Name

Internal gear, Ring gear, Internal helical gear

Tooth profile

Involute teeth

Pressure Angle

14.5°,20°,22.5° etc.

Max O.D

800mm

Max Width

160mm

Teeth No.

50~200

Accuracy Grade

DIN6-DIN10
