Product Specifications:
|
Material |
S45C, SUS303, FC200,CAC702, SCM440, Polyacetal, Brass, Plastic etc. ,Acetal/Delrin,Alloy, Brass, Bronze, Carbon Steel, Ductile Iron, Gray Cast Iron, Nylon, Plastic, Phenolic, Polycarbonate, Polyester, Stainless Steel etc. |
|
Modulus |
0.5-8 |
|
Accuracy |
DIN Class 6, ISO/GB Class 6, AGMA Class 13, JIS Class 2 |
|
Standard |
DIN, ISO/GB, AGMA, JIS |
|
Heat treatment |
Quenching and tempering, gear teeth induction quenching, nitriding, carburizing |
|
Application |
automotive, electronics, textiles, printing, packaging, medical equipment, food processing ,wind power, chemical, and pneumatics |

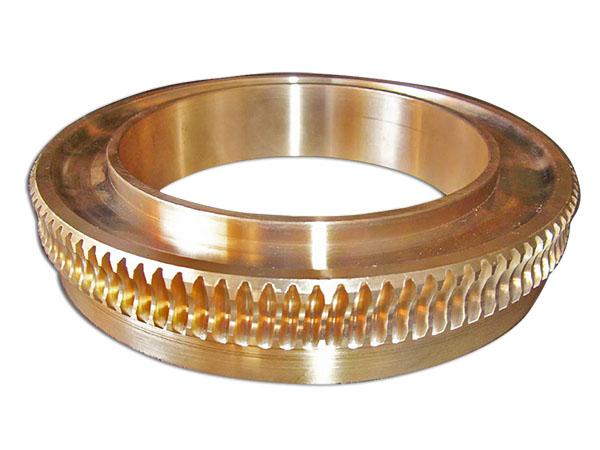

Capabilities of Worm Gears
|
Type |
Worm |
Worm wheel |
|
Module |
0.5~6 |
0.5~8 |
|
Pressure Angle |
14.5°， 20° or as required. |
|
|
No. of threads or reduction ratio |
Single thread~Triple thread |
10~60 |
|
Material |
S45C, SUS303, FC200,CAC702, SCM440, Polyacetal, Brass, Plastic etc. |
|
|
Heat treatment |
Thermal refined, gear teeth induction hardened |
|
|
Tooth surface finish |
Milling, Ground |
Hobbing |
|
Precision |
DIN6-DIN10 |
DIN8-DIN10 |
